Extend GeoIPS with a new Colormapper#

A GeoIPS colormapper defines a method of applying a colormap to imagery. There are multiple methods to implement this colormap, and we will present those throughout this section. This section is also largely informational. We will actually implement colormappers in the Create New Colormappers Section

The class attributes interface, family, and name (plus a class docstring) are required in every class-based GeoIPS plugin.

Please see documentation for additional info on these GeoIPS required attributes

Using an ASCII Colormap#

The matplotlib_linear_norm plugin can also leverage ASCII colormap files installed within GeoIPS, installed within a plugin package, or stored in an arbitrary location on disk.

To use an ascii colormap, specify:

cmap_source: ascii
cmap_name: <cmap_name>

Installed ASCII colormaps are stored within a plugin package under plugins/txt/ascii_palettes/. The filename must be of the form <cmap_name>.txt (this is how geoips finds the given cmap_name). The colors are defined as RGB triplets ranging from 0 to 256 and should be formatted as three columns of 256 integers.

Commented lines are allowed (prefaced by “#”), to provide additional context relating to the physical meaning of the colormap (ie, min and max expected values/units, transition points, etc).

For an example, see the tpw_purple colormap in the geoips package. If you would like to specify an arbitrary full path on disk rather than installing your ascii palette within your plugin package, additionally specify cmap_path. This is most useful for research, development, and testing purposes.

cmap_path: <full_path>/<any_name>.txt

Shown below is a YAML-based product defaults plugin for TPW-PURPLE, which makes use of ASCII color palettes.

interface: product_defaults
family: interpolator_algorithm_colormapper
name: TPW-PURPLE
docstring: |
  The TPW-PURPLE product_defaults configuration.
spec:
  algorithm:
    plugin:
      name: single_channel
      arguments:
        output_data_range: [5.0, 65.0]
        min_outbounds: mask
        max_outbounds: crop
        norm: null
        inverse: null
  colormapper:
    plugin:
      name: matplotlib_linear_norm
      arguments:
        cmap_name: tpw_purple
        cmap_source: ascii
        data_range: [5, 65]
        cbar_ticks: [5, 15, 25, 35, 45, 55, 65]
        cbar_label: TPW (mm)
        cbar_spacing: proportional
        create_colorbar: True
        cbar_full_width: True
  interpolator:
    plugin:
      name: interp_gauss
      arguments:
        sigmaval: 10000

matplotlib_linear_norm provides a number of options that can be used to customize how the colormap is used and how the colorbar is drawn.

Using a Custom Python-based Colormapper#

Color information can also be specified via a python-based GeoIPS “colormapper” plugin, allowing customization using specific matplotlib commands and utilities. This is the most flexible method, and is used largely throughout GeoIPS products. For many examples of colormappers that make use of the python-based method, see this link.

We will now step through a sample colormapper used for pmw_89pct. As with every class-based plugin, it subclasses its interface base class, sets the interface/family/name class attributes, and implements a call method.

"""Module containing colormap for 89 pct product."""

import logging  # optional... but be kind to everyone and provide some logging info please

from geoips.interfaces.class_based.colormappers import BaseColormapperPlugin

LOG = logging.getLogger(__name__)


class Pmw89pctColormapperPlugin(BaseColormapperPlugin):
    """Colormap for displaying ~89GHz PMW data for weak TCs."""

    interface = "colormappers"
    family = "matplotlib"
    name = "pmw_89pct"

    # Parameters are optional... but are useful for setting defaults!
    def call(self, data_range=[105, 280], cbar_label="TB (K)"):
        """Colormap for displaying ~89GHz PMW data for weak TCs."""

        """Here you set the values at which you want the colors to transition, as well
        as the colors each transition should be associated with. Gradient creation
        will be handled by GeoIPS."""
        transition_vals = [
            (data_range[0], 125),
            (125, 150),
            (150, 175),
            (175, 212),
            (212, 230),
            (230, 250),
            (250, 265),
            (265, data_range[1]),
        ]
        transition_colors = [
            ("orange", "chocolate"),
            ("chocolate", "indianred"),
            ("indianred", "firebrick"),
            ("firebrick", "red"),
            ("gold", "yellow"),
            ("lime", "limegreen"),
            ("deepskyblue", "blue"),
            ("navy", "slateblue"),
        ]
        ticks = [int(xx[0]) for xx in transition_vals]

        min_tb = transition_vals[0][0]  # You can define these parameters in a number of
        max_tb = transition_vals[-1][1] # ways – either in the call function, as values here,
        tickts = ticks + [int(max_tb)] # or even in the mpl_colors_info section.

        LOG.info("Setting cmap")  # Lines below are where gradients are created
        from geoips.image_utils.colormap_utils import create_linear_segmented_colormap
        mpl_cmap = create_linear_segmented_colormap(
            "89pct_cmap", min_tb, max_tb, transition_vals, transition_colors
        )

        LOG.info("Setting norm")
        from matplotlib.colors import Normalize  # Optional. You can import any mpl manipulations you want!
        mpl_norm = Normalize(vmin=data_range[0], vmax=data_range[1])

        cbar_spacing = "proportional"
        mpl_tick_labels = None
        mpl_boundaries = None

        mpl_colors_info = {
            "cmap": mpl_cmap,
            "norm": mpl_norm,  # Scales your values so the colorbar covers the specified range; Optional.
            "cbar_ticks": ticks,
            "cbar_tick_labels": mpl_tick_labels,  # Accepts a list of strings as labels.
            "cbar_label": cbar_label,
            "boundaries": mpl_boundaries,
            "cbar_spacing": cbar_spacing,
            "colorbar": True,
            "cbar_full_width": True,
        }
        return mpl_colors_info

The mpl_colors_info dictionary is what GeoIPS uses within the matplotlib-based utilities and output formatters in order to ensure consistent application of colors, in both the imagery and the colorbars. Further on, we will walk you through creating both GeoIPS Python-based colormapper, as well as ASCII-palette based matplotlib_linear_norm products.

Creating New Colormappers#

We will now go hands on in creating a custom python-based colormapper. This will be similar to the module shown above, but to your own specifications.

First off, lets create a new colormappers directory and activate it.

mkdir -pv $MY_PKG_DIR/$MY_PKG_NAME/plugins/classes/colormappers
touch $MY_PKG_DIR/$MY_PKG_NAME/plugins/classes/colormappers/__init__.py
cd $MY_PKG_DIR/$MY_PKG_NAME/plugins/classes/colormappers

Now that we have that directory activated, let’s create a file called colorful_cloud_height.py. Once you have that created, copy and paste the code below into your colormapper python file. Feel free to adjust any of the colors/parameters to what you need for your own colormap.

"""Module containing colormap for colorful cloud height products."""
import logging

from geoips.interfaces.class_based.colormappers import BaseColormapperPlugin

LOG = logging.getLogger(__name__)


class ColorfulCloudHeightColormapperPlugin(BaseColormapperPlugin):
    """Colorful cloud height colormap."""

    interface = "colormappers"
    family = "matplotlib"
    name = "colorful_cloud_height"

    def call(self, data_range=[0, 20]):
        """Colorful cloud height colormap."""

        transition_vals = [
            (data_range[0], 1),
            (1, 2),
            (2, 3),
            (3, 4),
            (4, 6),
            (6, 8),
            (8, 10),
            (10, 15),
            (15, data_range[1]),
        ]
         transition_colors = [
            ("pink", "red"),
            ("paleturquoise", "teal"),
            ("plum", "rebeccapurple"),
            ("yellow", "chartreuse"),
            ("limegreen", "darkgreen"),
            ("wheat", "darkorange"),
            ("darkgray", "black"),
            ("lightgray", "silver"),
            ("lightskyblue", "deepskyblue"),
        ]

        ticks = [int(xx[0]) for xx in transition_vals]
        tickts = ticks + [int(data_range[1])]

        LOG.info("Setting cmap")
        from geoips.image_utils.colormap_utils import create_linear_segmented_colormap
        mpl_cmap = create_linear_segmented_colormap(
            "89pct_cmap", data_range[0], data_range[1], transition_vals, transition_colors
        )

        LOG.info("Setting norm")
        from matplotlib.colors import Normalize
        mpl_norm = Normalize(vmin=data_range[0], vmax=data_range[1])

        cbar_spacing = "proportional"
        mpl_tick_labels = None
        mpl_boundaries = None

        mpl_colors_info = {
            "cmap": mpl_cmap,
            "norm": mpl_norm,
            "cbar_ticks": ticks,
            "cbar_tick_labels": mpl_tick_labels,
            "cbar_label": cbar_label,
            "boundaries": mpl_boundaries,
            "cbar_spacing": cbar_spacing,
            "colorbar": True,
            "cbar_full_width": True,
        }
        return mpl_colors_info


PLUGIN_CLASS = ColorfulCloudHeightColormapperPlugin

Now that you’ve properly created your class-based colormapper, we need to add it to pyproject.toml. Modify your this file (found in the top level of your package directory) to include the code listed below. Note: if you named your package something other than cool_plugins, replace that with your package name.

[project.entry-points."geoips.colormappers"]
colorful_cloud_height = "cool_plugins.plugins.classes.colormappers.colorful_cloud_height"

Once you’ve done that, you’ll have to reinstall your package since you modified pyproject.toml. If you don’t reinstall, GeoIPS won’t find your new colormapper in its namespace.

pip install -e $MY_PKG_DIR

Using Your Custom Python-based Colomapper in a Product#

Note, this section assumes you’ve already created the my_clavrx_products.yaml file. If you haven’t yet, please visit the Products Section to create that file first.

Let’s begin by adding a new product to your my_clavrx_products.yaml file, called Cloud-Base-Python-Colors. This file can be found in your products directory.

Copy and paste the code below into your products file, under the products section.

- name: Cloud-Base-Python-Colors
  source_names: [clavrx]
  docstring: |
    CLAVR-x Colorful Cloud Base Height,
    using a python-based custom colormapper.
  product_defaults: Cloud-Height
  spec:
    variables: ["cld_height_base", "latitude", "longitude"]
    colormapper:
      plugin:
        name: colorful_cloud_height
        arguments: {}

Create a Script to Visualize Your New Colormapper#

Now that we have a product that implements our new colormapper, run it through an OBP workflow. Create a workflow as in the Products tutorial whose product step is Cloud-Base-Python-Colors, then run it:

geoips run order_based cloud_base_python_colors \
    $GEOIPS_TESTDATA_DIR/test_data_clavrx/data/goes16_2023101_1600/*.hdf

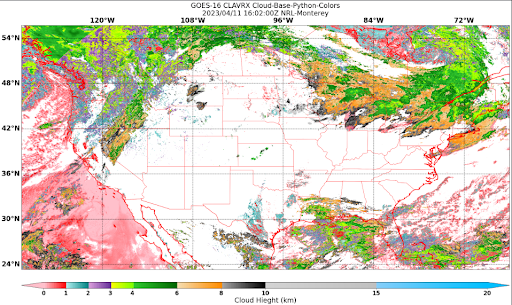

This will write some log output. If your script succeeded it will end with INTERACTIVE: Return Value 0. To view your output, look for the output image path printed in the log. Open the PNG file, it should look like the image below.

../../../_images/colorful_cloud_height.png
